Bil-Jax 5533A trailer-mounted articulating boom lift
Specifications for the Bil-Jax 5533A from the archived Bil-Jax literature, and parts and service for it from an independent shop in Orlando, Florida.

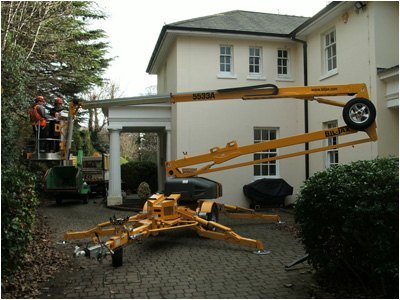

The Bil-Jax 5533A is the largest of the Summit Series trailer-mounted articulating booms: about 61 ft of working height, 33 ft of side outreach and 23 ft of up and over clearance, with a 4 ft 3 in platform jib.
Hydraulic outriggers level it automatically in about 30 seconds. It can be run from the platform or from the ground control station, and both use a display panel with the buttons laid out around a single picture of the machine, so each button sits next to the part of the lift it moves.
Bil-Jax 5533A specifications
From the Bil-Jax Summit Series towable specification sheet, as archived on the old aerialworkplatform.net site.
| Working height | 61 ft 3 in (18.8 m) |
|---|---|
| Maximum platform height | 55 ft 3 in (16.8 m) |
| Horizontal outreach, from centerline | 33 ft 5 in (10.2 m) |
| Horizontal outreach, from edge of footpad | 27 ft 4 in (8.2 m) |
| Up and over height | 23 ft 1 in (7 m) |
| Platform capacity | 500 lb (227 kg) |
| Jib | 4 ft 3 in (1.3 m), 150 degrees vertical motion (+70 / -80) |
| Stowed length | 22 ft 11 in (7 m) |
| Stowed width | 5 ft 5 in (165 cm) |
| Stowed height | 78 in (198 cm) |
| Outrigger footprint | 12 ft 11 in x 12 ft 9 in (3.9 m x 3.9 m) |
| Footpad diameter | 12 1/2 in (32 cm) |
| Tongue weight | 335 lb with no options, 500 lb with all options |
| Tire size | ST 225/75 R15D |
| Charger | 40 amp |
| Machine weight, no options | 4,800 lb (2,177 kg) |
| Platform size | 48 in x 30 in, 43 in rail height |
| Platform rotation (option) | 120 degrees, manual |
| Turntable rotation | 700 degrees, non-continuous |
| Outriggers | hydraulic, automatic leveling |
| Leveling capability | 12 1/2 degrees |
| Tow speed rating | 65 mph |
| Brakes | hydraulic surge brakes standard (electric optional), mechanical parking brake |
| Control system | 24V DC |
| Batteries | 4 x 6V, 245 amp-hr |
Where the literature disagrees
Figures changed between production years and with options, so the serial plate on your machine is the final word. Other archived 5533A literature says:
- The later technical data sheet lists 5 ft 7 in stowed width and 6 ft 6 in stowed height; weight 4,800 lb.
Working height is the platform height plus 6 ft (2 m in metric), as is standard for aerial work platforms. Later Bil-Jax literature carries the Haulotte Group name, which is why the same machine is also looked up as the Haulotte 5533A.
About the 5533A
- Articulating boom with a 4 ft 3 in platform jib
- Automatic leveling in under 30 seconds
- 12 1/2 in (32 cm) non-marking outrigger footpads
- Platform and ground controls with the same layout
- Hydraulic surge and parking brakes
5533A parts and service
Robert's Diesel Works is an independent shop in Orlando, Florida. We are not a Bil-Jax or Haulotte dealer. We find parts for the 5533A by model and serial number, new or used, and we service and repair these lifts at our shop. Parts we are asked for on this model:
- Outrigger cylinders, seal kits, holding valves and the automatic leveling sensors and controls
- Boom and jib cylinders, wear pads, pins and bushings
- Hydraulic pump and motor units, valves, hoses and fittings
- 24V batteries, chargers, battery condition meters and the gas or hybrid engine parts
- Platform and ground control boxes, switches, tilt alarms and wiring
- Surge brake actuators, hitches, hubs, bearings and trailer tires
Send us the model and serial number from the plate, the part number if you can read it, or a photograph of the part, and we will work out what it is and quote it. We ship anywhere.
Looking for a used 5533A?
The lifts once listed on this site have sold. Used Bil-Jax machines come through our shop from time to time, so call (877) 697-6272 and ask what we have, or leave your details in the form below. If you are buying a 5533A somewhere else, we can look it over before you pay for it.
