Bil-Jax lift models and specifications
Towable boom lifts, self-propelled X-Boom lifts and a push-around vertical lift. Pick a model for its full specifications, the places the literature disagrees, and parts and service.
The range at a glance
Working height, platform capacity and machine weight with no options, from the Bil-Jax specification sheets archived on this site. Each model page has the full table.
| 2622T towable telescopic | 32 ft 6 in, 440 lb, 2,890 lb |
|---|---|
| 3632T towable telescopic | 43 ft 6 in, 500 lb, 4,400 lb |
| 4642T towable telescopic | 52 ft 4 in, 350 / 500 lb, 5,700 lb |
| 3522A towable articulating | 41 ft 9 in, 500 lb, 3,400 lb |
| 4527A towable articulating | 51 ft, 500 lb, 4,200 lb |
| 5533A towable articulating | 61 ft 3 in, 500 lb, 4,800 lb |
| 36XT self-propelled telescopic | 43 ft 6 in, 500 lb, 5,020 lb |
| 45XA self-propelled articulating | 51 ft, 500 lb, 4,715 lb |
| 55XA self-propelled articulating | 61 ft 3 in, 500 lb, 6,000 lb |

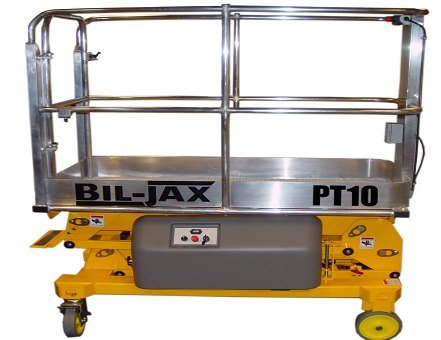

| PT10 push-around vertical | 16 ft 1 in, 500 lb, 880 lb |
Summit Series towable boom lifts
Trailer-mounted booms that tow behind a half-ton pickup, rated to 65 mph. All of them set up on hydraulic outriggers that level the machine automatically in about 30 seconds when all four go down together. The T models have a straight telescopic boom; the A models articulate, with a platform jib, to reach up and over an obstacle.
Bil-Jax 2622T
Towable telescopic boom, 32 ft 6 in working height, 440 lb platform, 2,890 lb.
2622T specs
Bil-Jax 3632T
Towable telescopic boom, 43 ft 6 in working height, 32 ft outreach, 500 lb platform.
3632T specsBil-Jax 4642T
Three-section towable telescopic boom, 52 ft 4 in working height, 41 ft 6 in outreach.
4642T specs
Bil-Jax 3522A
Towable articulating boom with jib, about 42 ft working height, 19 ft up and over.
3522A specs
Bil-Jax 4527A
Towable articulating boom with jib, 51 ft working height, 27 ft outreach, 500 lb.
4527A specs
Bil-Jax 5533A
The largest towable articulating boom: 61 ft 3 in working height, 33 ft 5 in outreach.
5533A specsX-Boom self-propelled lifts
Four-wheel-drive boom lifts that set up on hydraulic outriggers instead of a counterweight, which keeps them light enough to trailer without a commercial driver's license.

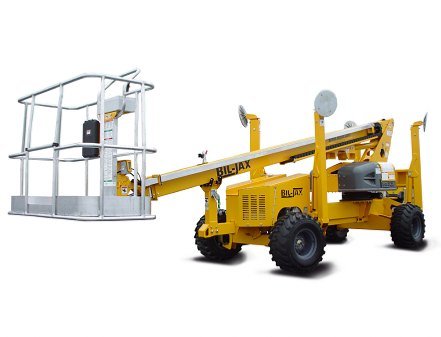

Bil-Jax 36XT
Self-propelled 4WD telescopic X-Boom, 43 ft 6 in working height, 5,020 lb.
36XT specs

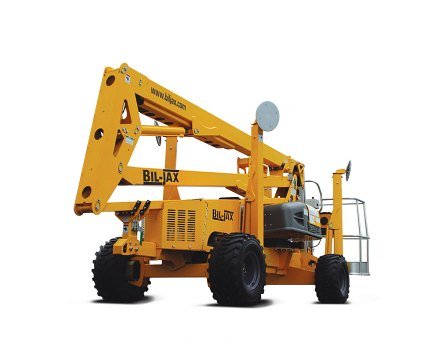

Bil-Jax 45XA
Self-propelled 4WD articulating X-Boom with jib, 51 ft working height, 4,715 lb.
45XA specsBil-Jax 55XA
Self-propelled 4WD articulating X-Boom, 61 ft 3 in working height, 6,000 lb.
55XA specsPush-around vertical lift
Which one
- Indoor work through a standard doorway: the PT10, 30 inches wide
- General towable work up to about 43 ft: the 2622T or 3632T
- The most reach from a towable: the 4642T, 41 ft 6 in from centerline
- Up and over a roof edge or a hedge: the articulating 3522A, 4527A or 5533A
- No trailer, rough ground: the self-propelled 36XT, 45XA or 55XA
