Bil-Jax aerial work platforms: parts, service and specs
Specifications for the Bil-Jax towable booms, X-Boom self-propelled lifts and the PT10, plus parts and service for them from an independent shop in Orlando, Florida. Call with the model and serial number and we will find the part.
Specs for every Bil-Jax lift this site covered
This site has carried the specifications of the Bil-Jax Summit Series towable boom lifts, the X-Boom self-propelled lifts and the PT10 push-around lift since 2009. The figures come from the Bil-Jax literature, and where two versions of the literature disagree, each model page shows both.

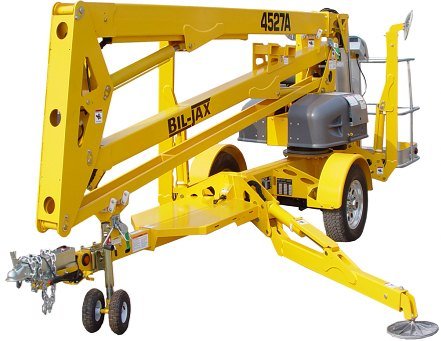

Bil-Jax 4527A
Towable articulating boom with jib, 51 ft working height, 27 ft outreach, 500 lb.
4527A specs

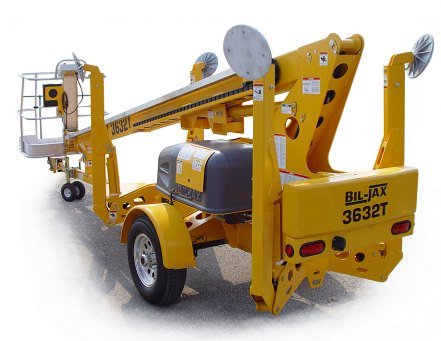

Bil-Jax 3632T
Towable telescopic boom, 43 ft 6 in working height, 32 ft outreach, 500 lb platform.
3632T specs

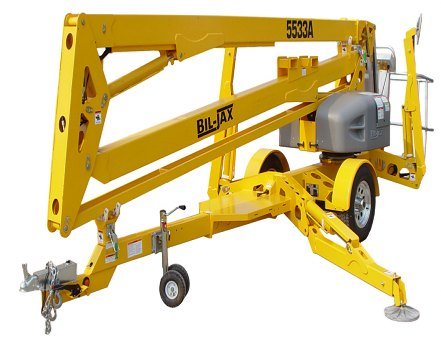

Bil-Jax 5533A
The largest towable articulating boom: 61 ft 3 in working height, 33 ft 5 in outreach.
5533A specs

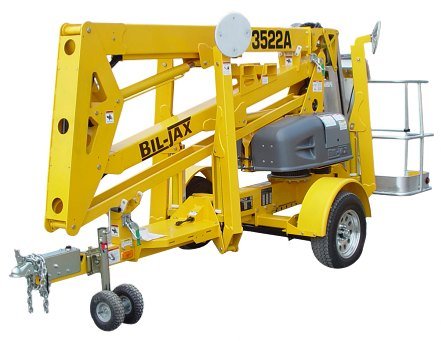

Bil-Jax 3522A
Towable articulating boom with jib, about 42 ft working height, 19 ft up and over.
3522A specs

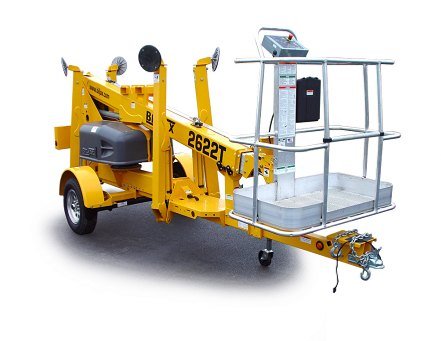

Bil-Jax 2622T
Towable telescopic boom, 32 ft 6 in working height, 440 lb platform, 2,890 lb.
2622T specsBil-Jax 4642T
Three-section towable telescopic boom, 52 ft 4 in working height, 41 ft 6 in outreach.
4642T specsThe self-propelled 36XT, 45XA and 55XA and the PT10 push-around vertical lift are on the Bil-Jax lift models page with the rest.
Parts and service, matched to your lift
Robert's Diesel Works is an independent crane, truck and equipment shop in Orlando, Florida. We are not a Bil-Jax or Haulotte dealer, so there is no online catalogue here. There is a parts and service desk that has worked on hydraulic lifting equipment since 1989. Give us the model and serial number off the lift's plate, and the part number or a photograph, and we will find the part, quote it new or used, and ship it to wherever the lift is. See Bil-Jax lift parts and service.
Need a part for a Bil-Jax lift?
Read us the model and serial number off the lift's plate, add the part number or a photograph, and we will find the part and quote it, new or used.
What people call us for
- Outrigger cylinders, seal kits, holding valves and auto-leveling faults
- Boom and jib cylinders, wear pads, pins and bushings
- Batteries, chargers and hydraulic power units
- Control boxes, switches, tilt alarms and wiring
- Surge brakes, hitches, hubs and trailer tires on the towables
- A look over a used lift before you buy it
Used lifts
The lifts once listed on this site have sold. Used Bil-Jax machines come through the shop from time to time, so call and ask what we have. Cranes, crane trucks and more manlifts are at drywallcranes.com.
